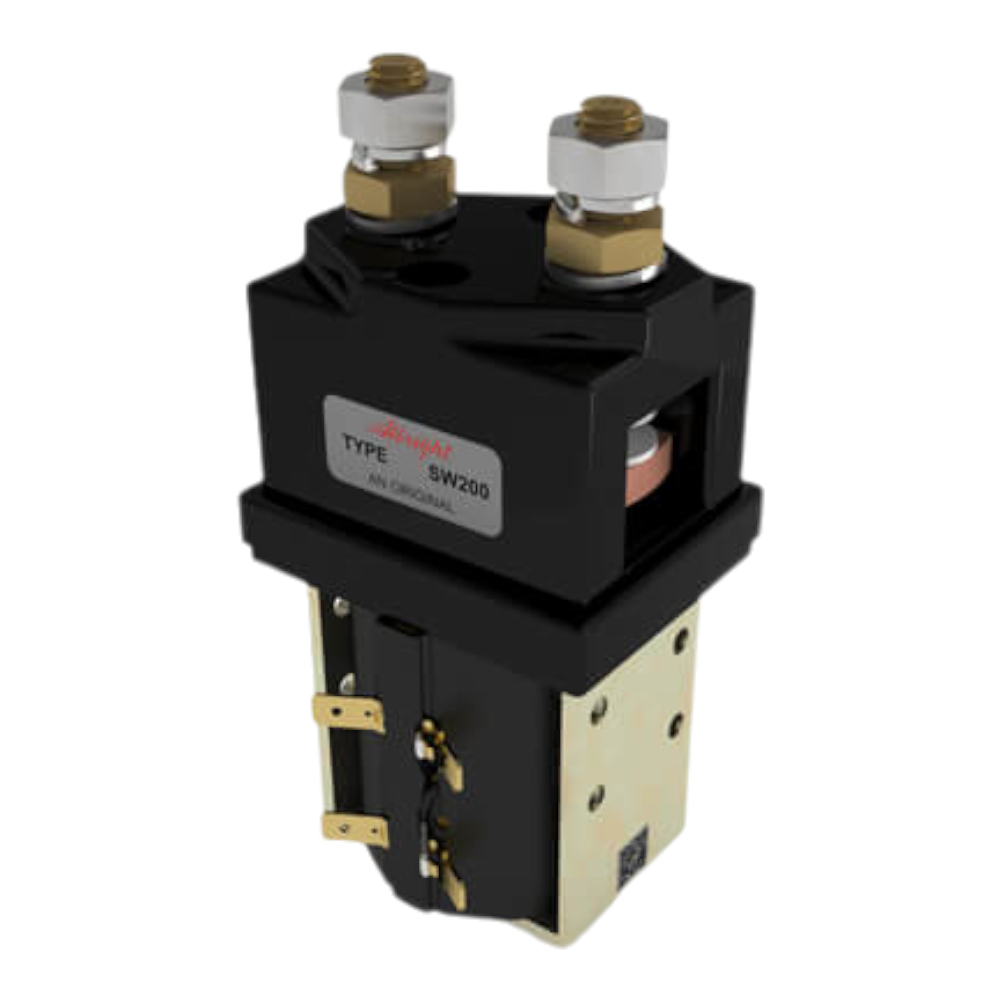

Albright SW200-20 48v Contactor

The SW200 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks.  Developed for both interrupted and uninterrupted loads, the SW200 is suitable for switching Resistive, Capacitive and Inductive loads. The SW200 features single pole single throw, double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity.

The SW200 has M10 stud main terminals and 6.3mm spade coil connections.  It can be mounted via M5 tapped holes or mounting brackets – either supplied fitted, or as separate items.  Mounting can be horizontal or vertical, when vertical the M10 contact studs should point upwards. Downwards facing studs can be catered for upon request.

The contactor can be specified with Blowouts which increate it's capabilities, please contact us for non-standard specifications.

Features & benefits:

• Normally open contacts, single pole, single throw.
• 48V coil.

• Rated Contact Voltage up to 48V D.C. (60V D.C. uninterrupted).
• Rated Contact Current up to 250a (400 a unterrupted).
• M10x13 threaded studs.
• 1500A rated current breaking capacity at 48V D.C.

Applications include:

• Automotive, E-Mobility.
• Battery Management Systems, service disconnection.
• Power distribution units.
• Renewable energy switching.
